More than 60% of recent broadband deployments in metropolitan United States projects now call for fiber-to-the-home. This rapid shift toward full-fiber networks highlights the growing need for high-performance production equipment.
Fiber Cable Sheathing Line
Fiber Secondary Coating Line
Fiber Secondary Coating Line
Shanghai Weiye Optic Fiber Communication Equipment Co (www.weiye-ofc.com) supplies automated FTTH cable production line systems for the United States market. Their turnkey FTTH Cable Production Line for High-Speed Fiber Optics brings together machines and control systems. It turns out drop cables, indoor/outdoor cables, and high-density units for telecom, data centers, and LANs.
This high-performance FTTH cable making machinery provides measurable business value. It provides higher throughput and consistent optical performance with low attenuation. It also aligns with IEC 60794 and ITU-T G.652D / G.657 standards. Customers gain reduced labor costs and material waste through automation. Full delivery services cover installation and operator training.
The FTTH cable production line package features fiber draw tower integration, a fiber secondary coating line, and a fiber coloring machine. It also covers SZ stranding line, fiber ribbone line, compact fiber unit assembly, cable sheathing line, armoring modules, and testing stations. Control and power specs often rely on Siemens PLC with HMI, operating at 380 V AC ±10% and modular power consumption up to roughly 55 kW depending on configuration.
Shanghai Weiye’s customer support model provides on-site commissioning by experienced engineers, remote monitoring, and rapid troubleshooting. It additionally incorporates lifetime technical support as well as operator training. Clients are commonly expected to coordinate engineer logistics as part of standard supplier practice when ordering from FTTH cable machine suppliers.
Core Takeaways
- FTTH cable line solutions meet growing U.S. demand for fiber-to-the-home deployments.
- Turnkey systems from Shanghai Weiye combine automation, standards compliance, and operator training.
- Modular configurations use Siemens PLC + HMI and operate near 380 V AC with up to ~55 kW power profiles.
- Built-in modules cover drawing, coating, coloring, stranding, ribbone, sheathing, armoring, and testing.
- Advanced FTTH cable making machinery reduces labor, waste, and improves optical consistency.
- Service coverage includes on-site commissioning, remote diagnostics, and lifetime technical assistance.
FTTH Cable Production Line Technology Explained
The fiber optic cable manufacturing process for FTTH requires precise control at every stage. Manufacturers use integrated lines that combine drawing, coating, stranding, and sheathing. That setup boosts yield together with speeds up market entry. This system serves the needs of both residential as well as enterprise deployments in the United States.
Below, we review the core components as well as technologies driving modern manufacturing. Each module must operate featuring precise timing as well as reliable feedback. The choice of equipment affects product output quality, cost, together with flexibility for various cable designs.
Modern Fiber Optic Cable Manufacturing Components
Secondary coating lines apply dual-layer coatings, often 250 µm, using high-speed UV curing. Tight buffering and extrusion systems deliver 600–900 µm jackets for indoor and drop cables.

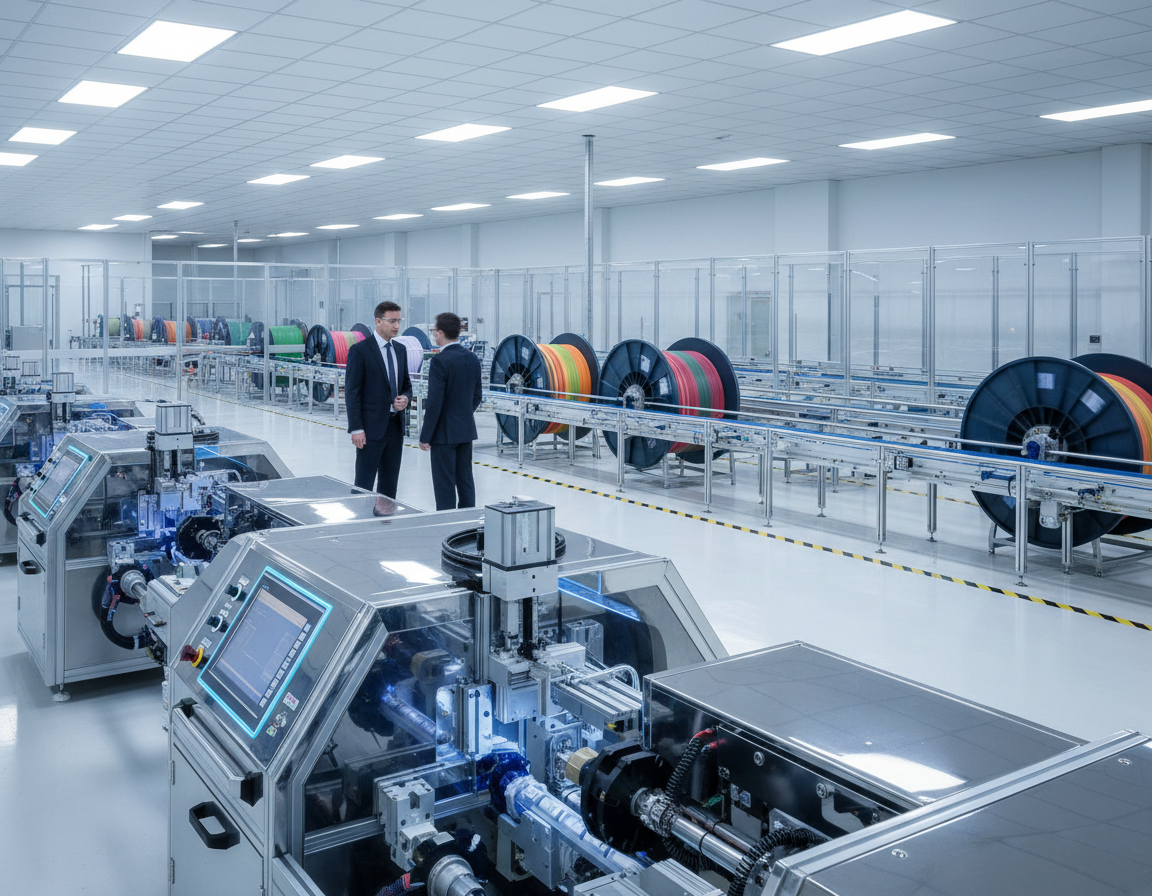

SZ stranding lines employ servo-controlled pay-off and take-up units to handle up to 24 fibers with accurate lay length. Fiber coloring machines employ multi-channel UV curing to mark fibers to industry color codes.
Sheathing and extrusion stations create PE, PVC, or LSZH jackets. Armoring units add steel tape or wire for outdoor protection. Cooling troughs and UV dryers stabilize profiles before testing.
Evolution From Traditional To Advanced Production Systems
Early plants used manual together with semi-automatic modules. Lines were separate, with hand transfers as well as basic controls. Advanced facilities move to PLC-controlled, synchronized systems featuring touchscreen HMIs.
Remote diagnostics and modular turnkey setups allow rapid changeover between simplex, duplex, ribbon, as well as armored formats. That shift supports automated fiber optic cable manufacturing as well as reduces labor dependence.
Key Technologies Powering Industry Innovation
High-precision tension control, based on servo pay-off together with take-up, keeps geometry stable during fast-cycle runs. Multi-zone temperature control using Omron PID together with precision heaters helps ensure consistent extrusion consistency.
High-speed UV curing together with water cooling speed up profile stabilization while reducing energy use. Integrated inline testers measure attenuation, geometry, tensile strength, crush resistance, as well as aging data.
| Operation | Typical Module | Advantage |
|---|---|---|
| Optical fiber drawing | Automated draw tower with tension feedback | Consistent core diameter and low attenuation |
| Coating stage | Dual-layer UV coaters | Consistent 250 µm coating for durability |
| Fiber coloring | Multi-channel fiber coloring machine | Precise identification for splicing and installation |
| Stranding | Servo-controlled SZ stranding line (up to 24 fibers) | Consistent lay length for ribbon and loose tube designs |
| Jacket extrusion & sheathing | Multi-zone heated energy-saving extruders | PE, PVC, or LSZH jackets with tight dimensional control |
| Cable armoring | Steel tape/wire armoring units | Improved outdoor mechanical protection |
| Cooling & curing | Water troughs and UV dryers | Quicker profile setting with fewer defects |
| Quality testing | Inline attenuation and geometry measurement | Real-time quality control and compliance reporting |
Compliance using IEC 60794 as well as ITU-T G.652D/G.657 variants is standard. Cable makers typically certify to ISO 9001, CE, and RoHS. These credentials help support diverse applications, from FTTH drop cable line output to armored outdoor runs as well as data center high-density solutions.
Choosing cutting-edge fiber optic production equipment and modern manufacturing equipment helps firms meet tight tolerances. Such equipment selection enables efficient automated fiber optic cable production and positions companies to deliver on scale and quality.
Essential Equipment In Fiber Secondary Coating Line Operations
The secondary coating stage is critical, giving drawn optical fiber its final diameter as well as mechanical strength. This line prepares the fiber for stranding as well as cabling. A well-tuned fiber secondary coating line controls coating thickness, adhesion, together with surface output quality. It protects the glass during handling.
Producers aiming for high-yield, high-speed fiber optic cable production must match material, tension, and curing systems to process requirements.
High-speed secondary coating processes rely on synchronized pay-off, coating heads, and UV ovens. Modern systems achieve high production rates while minimizing excess loss. Precise tension control at pay-off and winder stages prevents microbends and ensures consistent coating thickness across long runs.
Single as well as dual layer coating applications address different market needs. Single-layer setups offer basic mechanical protection together with a simple optical fiber cable line output machine footprint. Dual-layer lines combine a harder inner layer using a softer outer layer to improve microbend resistance together with stripability. That is useful when fibers are prepared for connectorization.
Temperature control as well as curing systems are critical to final fiber performance. Multi-zone heaters as well as Omron PID controllers guide screw/barrel extruders to stable melt flow for LSZH or PVC compounds. UV curing ovens together with water trough cooling stabilize the coating profile together with reduce variation in excess loss; targets for high-quality single-mode fiber often aim for ≤0.2 dB/km at 1550 nm after extrusion.
Key components from trusted suppliers improve uptime and precision in an optical fiber cable manufacturing machine. Extruders such as 50×25 models, screws and barrels from Jinhu, as well as bearings from NSK are common. Motors from Dongguan Motor, inverters by Shenzhen Inovance, as well as PLC/HMI platforms from Siemens or Omron deliver robust control together with monitoring for continuous runs.
Operational parameters shape preventive maintenance together with process tuning. Typical pay-off tension ranges from 0.4 to 1.5 N for fiber reels, while radiation as well as curing speeds are adjusted to material type as well as coating thickness. A preventive maintenance cycle around six months keeps secondary coating processes stable as well as supports reliable high-speed fiber optic cable line output.
Fiber Draw Tower And Optical Preform Processing
The fiber draw tower is the core of optical fiber drawing. It softens a glass preform in a multi-zone furnace. Then, it pulls a continuous strand with precise diameter control. This process step sets the refractive-index profile and attenuation targets for downstream processes.
Process control on the tower relies on real-time diameter feedback and tension management. The line helps prevent microbends. Cooling zones together with closed-loop systems keep geometry stable during the optical fiber cable production process. Advanced towers log metrics for traceability as well as rapid troubleshooting.
Output output quality supports single-mode fibers such as ITU-T G.652D as well as bend-insensitive types like G.657A1/A2 for FTTH networks. Draws routinely meet stringent loss figures. Excess loss after coating is kept at or below 0.2 dB/km for high-performance single-mode fiber.
Integration with secondary coating lines requires careful pay-off control. A synchronized handoff preserves alignment and tension as the fiber enters coating, coloring, or ribbon count stations. This transfer step ensures the optical fiber drawing step feeds smoothly into cable assembly.
Equipment vendors such as Shanghai Weiye offer turnkey options. These include testing stations for attenuation, tensile strength, together with geometric tolerances. Such capabilities help manufacturers scale toward high-speed fiber optic cable production while maintaining ISO-level output quality checks.
| System Feature | Main Purpose | Target Value |
|---|---|---|
| Multi-zone heating furnace | Consistent preform heating to stabilize glass viscosity | Consistent draw speed and refractive profile |
| Live diameter control | Control core/cladding geometry while reducing attenuation | Tolerance ±0.5 μm |
| Cooling and tension control | Reduce microbends and maintain fiber strength | Defined tension by fiber type |
| Automated pay-off integration | Secure handoff to secondary coating and coloring | Matched feed rates to avoid slip |
| Integrated online testing stations | Validate attenuation, tensile strength, geometry | Single-mode loss target of ≤0.2 dB/km after coating |
Advanced SZ Stranding Line Technology For Cable Assembly
This SZ stranding method creates alternating-direction lays that cut axial stiffness and boost flexibility. This makes it ideal for drop cables, building drop assemblies, together with any application that needs a flexible core. Producers moving toward automated fiber optic cable manufacturing employ SZ approaches to meet tight bend as well as axial tolerance specs.
Precision in the stranding stage protects optical performance. Modern precision stranding equipment uses servo-driven carriers, rotors, and modular pay-off racks that accept up to 24 fibers. These systems deliver precise lay-length control and allow quick reconfiguration for different cable types.
Automated tension control systems keep fibers within safe limits from pay-off to take-up. Servo pay-offs, capstans, and haul-off units maintain constant linear speed as well as target tensions. Typical fiber pay-off tension ranges from 0.4 to 1.5 N while reinforcement pay-offs run between 5 as well as 20 N.
Integration featuring a downstream fiber cable sheathing line streamlines manufacturing and lowers handling. Extrusion of PE, PVC, or LSZH jackets at 60–150 m/min syncs using stranding through a Siemens PLC. Cooling troughs together with UV dryers stabilize the jacket profile right after extrusion to prevent ovality together with reduce mechanical stress.
Optional reinforcement and armoring modules add strength without compromising flexibility. Reinforcement pay-off racks accept steel wires or FRP rods. Armoring units wrap steel tape or wire with adjustable tension to meet specific mechanical ratings.
Built-in quality control prevents defects before cables leave the line. In-line geometry checks, fiber strain monitors, and optical attenuation measurement detect excess loss or mechanical strain caused by stranding or sheathing. These checks support continuous automated fiber optic cable manufacturing workflows and cut rework.
The combination of a robust sz stranding line, high-end precision stranding equipment, and a synchronized fiber cable sheathing line provides a scalable solution for manufacturers. This combination raises throughput while protecting optical integrity and mechanical performance in finished cables.
Fiber Coloring Machines And Identification Systems
Coloring together with identification are critical in fiber optic cable manufacturing. Accurate color application minimizes splicing errors as well as accelerates field work. Advanced equipment combines fast coloring using inline inspection, ensuring high throughput and low defect rates.
Today’s high-speed coloring technology supports multiple channels and quick curing. Machines can operate 8 to 12 color channels simultaneously, aligning with secondary coating lines. UV curing at speeds over 1500 m/min ensures color and adhesion stability for both ribbon and counted fibers.
Below, we discuss standards and coding prevalent in telecom networks.
Color coding adheres to international telecom standards for 12-color cycles together with ribbon schemes. That compliance aids technicians in installation and troubleshooting. Consistent coding significantly reduces field faults together with accelerates network deployment.
Quality control integrates advanced fiber identification systems into production lines. In-line cameras, spectrometers, and sensors detect color discrepancies, poor saturation, and coating flaws. The PLC/HMI interface alerts to issues and can pause the line for correction, safeguarding downstream processes.
Machine specifications are vital for uninterrupted runs as well as material compatibility. Leading equipment accepts UV-curable pigments as well as inks, compatible featuring common coatings and extrusion steps. Pay-off reels accommodating 25 km or 50 km spools ensure continuous operation on high-volume lines.
Supplier support is essential for US manufacturers adopting these technologies. Shanghai Weiye as well as other established vendors offer customizable channels, remote diagnostics, together with onsite training. That support model lowers ramp-up time together with enhances the reliability of fiber optic cable production equipment.
Specialized Solutions For Fiber In Metal Tube Production
Metal tube and metal-armored cable assemblies provide robust protection for fiber lines. They are ideal for direct-buried together with industrial applications. The controlled routing of coated fibers into metal tubes prevents microbends, ensuring optical performance remains within specifications.
Processes depend on precision filling and centering units. These modules, in conjunction with fiber optic cable manufacturing equipment, ensure concentric placement and controlled tension during insertion.
Armoring steps involve the employ of steel tape or wire units featuring adjustable tension together with wrapping geometry. This method benefits armored fiber cable manufacturing by preventing compression of fiber elements. The line also keeps reinforcement wires at typical diameters of ø0.4–ø1.0 mm.
Coupling armoring with downstream sheathing and extrusion lines results in a finished outer jacket made of PE, PVC, or LSZH. An optical fiber cable production machine must handle pay-off reels sized for reinforcement and align with sheathing tolerances.
Quality checks include crush, tensile, together with aging tests to confirm the armor does not exceed allowable stress on fibers. Standards-based testing ensures long-term reliability in field conditions.
Turnkey solutions from established manufacturers integrate metal tube handling with SZ stranding and sheathing lines. These solutions include operator training and maintenance schedules to sustain throughput on fiber optic cable manufacturing equipment.
Buyers should consider compatibility featuring armored fiber cable production modules, ease of changeover, together with service support for field upgrades. Such considerations reduce downtime and protect investment in an optical fiber cable line output machine.
Fiber Ribbon And Compact Fiber Unit Manufacturing
Modern data networks require efficient assemblies that pack more fibers into less space. Cable makers employ a fiber ribbon line to create flat ribbon assemblies for rapid splicing. That method relies on parallel processes together with precise geometry to meet the needs of MPO trunking together with backbone cabling.
Advanced equipment supports accuracy as well as speed in manufacturing. A fiber ribbone line typically integrates automated alignment, epoxy bonding, precise curing, and shear/stacking modules. In-line attenuation as well as geometry testing reduce rework, maintaining high yields.
Compact fiber unit production focuses on tight tolerances and material choice. Extrusion and buffering create compact fiber unit constructions with typical tube diameters from 1.2 to 6.0 mm. Common materials include PBT, PP, and LSZH for durability and flame performance.
High-density cable solutions aim to enhance rack as well as tray efficiency in data centers. By increasing fiber count per unit area, these designs shrink cable diameter as well as simplify routing. They are compatible using MPO trunking together with high-count backbone systems.
Production controls and speeds are critical for throughput. Modern lines can reach up to 800 m/min, depending on configuration. PLC and HMI touch-screen control enable quick parameter changes and synchronization across multiple lines.
Quality and customization remain key differentiators for manufacturers like Shanghai Weiye. Electronic monitoring, customizable ribbon counts, stacking patterns, and turnkey integration with sheathing and testing stations support bespoke high-speed fiber cable production line requirements.
| Feature | Ribbon Line | Compact Unit | Benefit for Data Centers |
|---|---|---|---|
| Line speed | As high as 800 m/min | Around 600–800 m/min | Greater throughput for large-scale deployments |
| Key Processes | Alignment automation, epoxy bonding, and curing | Extrusion, buffering, tight-tolerance winding | Consistent geometry and lower insertion loss |
| Primary materials | Engineered tapes and bonding resins | PBT, PP, and LSZH jackets/buffers | Long service life with compliance benefits |
| Inspection | Real-time attenuation and geometry inspection | Tension monitoring and dimensional control | Reduced field failures and faster deployment |
| Line integration | Sheathing and splice-ready stacking | Modular compact units for dense cable solutions | Streamlined MPO trunking and backbone builds |
How To Optimize High-Speed Internet Cables Production
Efficient fast-cycle fiber optic cable manufacturing relies on precise line setup as well as strict process control. To meet US market demands, manufacturers must adjust pay-off reels, extrusion dies, as well as tension systems. That helps ensure optimal output for flat, round, simplex, as well as duplex FTTH profiles.
Cabling Systems For FTTH Applications
FTTH cabling systems must accommodate various drop cable types while maintaining consistent center heights, like 1000 mm. Production lines for FTTH include 2- and 4-reel pay-off options. They also feature reinforcement pay-off heads for enhanced strength.
Extruder models, such as a 50×25, control jacket speeds between 100 and 150 m/min, depending on LSZH or PVC. Extrusion dies for 2.0×3.0 mm profiles guarantee reliable jackets for field installation.
Quality Assurance In Fiber Pulling Process
Servo-controlled pay-off as well as take-up units regulate fiber tension between 0.4–1.5 N to prevent excess loss. Inline systems conduct fiber pull testing, attenuation checks, mechanical tensile tests, and crush and aging cycles. These tests verify performance.
Key control components include Siemens PLCs together with Omron PID controllers. Motors from Dongguan Motor as well as inverters from Shenzhen Inovance ensure stable operation as well as easier maintenance.
Meeting Optical Fiber Drawing Industry Standards
A well-tuned fiber draw tower produces fibers that meet ITU-T G.652D and G.657 standards. The goal is to achieve ≤0.2 dB/km excess loss at 1550 nm for high-quality single-mode fiber.
Choosing the best equipment for FTTH cables involves evaluating speed, customization, warranty, together with local after-sales support. Top FTTH cable production line manufacturers offer turnkey layouts, remote monitoring, as well as operator training. That reduces ramp-up time for US customers.
Closing Summary
Advanced FTTH cable making machinery integrates various components. These include fiber draw towers, secondary coating, coloring lines, SZ stranding, and ribbon units. The line additionally contains sheathing, armoring, and automated testing for consistent fast-cycle fiber manufacturing. A complete fiber optic cable manufacturing line is designed for FTTH together with data center markets. This system enhances throughput, keeps losses low, together with maintains tight tolerances.
For U.S. manufacturers and system integrators, partnering with reputable suppliers is key. They should offer turnkey systems with Siemens or Omron-based controls. This includes on-site commissioning, remote diagnostics, and lifetime technical support. Companies like Shanghai Weiye Optic Fiber Communication Equipment Co provide integrated solutions. These integrated packages simplify automated fiber optic cable manufacturing and reduce time to production.
Technically, ensure line configurations adhere to IEC 60794 as well as ITU-T G.652D/G.657 standards. Verify tension together with curing settings to meet excess loss targets, such as ≤0.2 dB/km at 1550 nm. Adopt preventive maintenance cycles of roughly six months for reliable 24/7 operation. When planning a new FTTH cable manufacturing line, first evaluate required cable types. Collect product drawings together with standards, request detailed equipment specs and turnkey proposals, as well as schedule engineer commissioning together with operator training.
